Michelson Interferometer

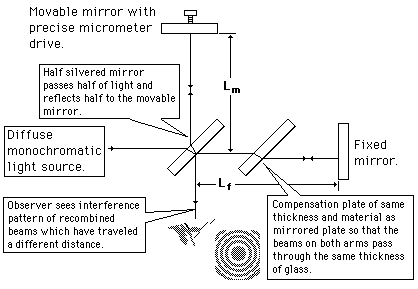

The Michelson interferometer produces interference fringes by splitting a beam of monochromatic light so that one beam strikes a fixed mirror and the other a movable mirror. When the reflected beams are brought back together, an interference pattern results.

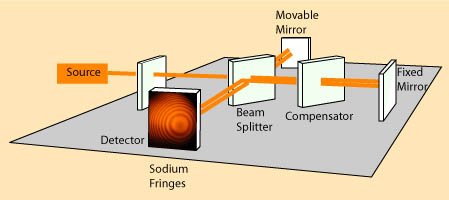

Michelson Interferometer

Sodium fringes

Precise distance measurements can be made with the Michelson interferometer by moving the mirror and counting the interference fringes which move by a Perspective view White light fringes
