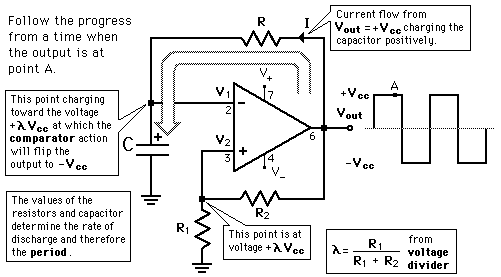

Square Wave Generator

This square wave generator is like the Schmitt trigger circuit in that the
Comparator Applications
Show
Voltage Divider
Examine Process
Calculation

Index

Electronics concepts

Op-amp concepts


Electricity and magnetism
Go Back

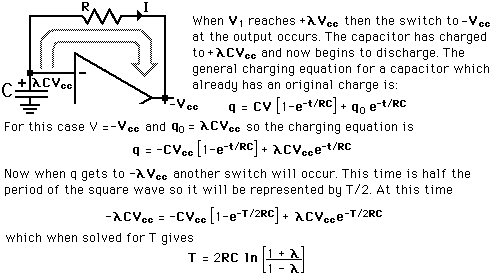

Period of Square Wave Generator

More DetailSquare wave generator circuit
Index

Electronics concepts

Op-amp concepts


Electricity and magnetism
Go Back

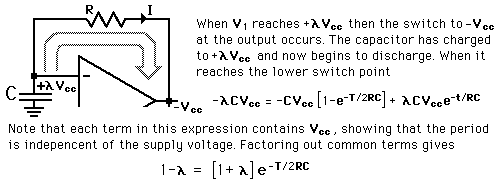

Square Wave Period: Details

Now taking the natural logarithm of both sides:

CalculationSquare wave generator circuit
Index

Electronics concepts

Op-amp concepts


Electricity and magnetism
Go Back








Square Wave Generator

Show
Discussion of circuit
For circuit parameters:
=
=
=
=
the period will be
T = x 10^ s
and the frequency of the square wave is
f = kHz = MHz

Note that even though the square wave generator swings the voltage output from plus to minus , the frequency does not depend upon this supply voltage. If you supplied it with a variable voltage, you could freely change the amplitude without changing the frequency. You could then make it a variable frequency source by making either C or R variable.

Show expressions
Index

Electronics concepts

Op-amp concepts

Electricity and magnetism
Go Back










Square Wave Generator Process

Square Wave GeneratorCalculationDevelopment of period expression
