Transistor Characteristic Curves
(Approximate for 2N2222)
Electronics concepts
| Electricity and magnetism |

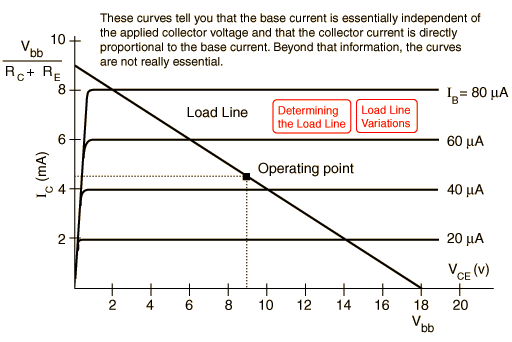

Transistor Characteristic Curves(Approximate for 2N2222) |
Index Electronics concepts | ||
|
Go Back |

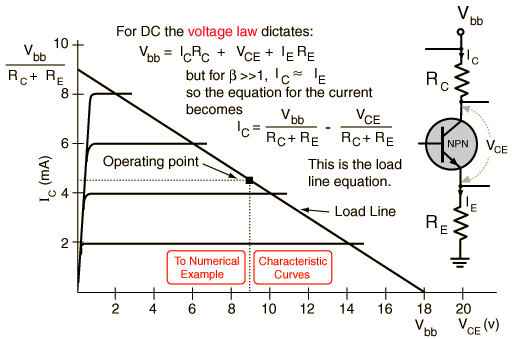

Transistor Load Line(Approximate for 2N2222) |
Index Electronics concepts | ||
|
Go Back |
Transistor Load Line(Approximate for 2N2222) |
Index Electronics concepts | ||
|
Go Back |

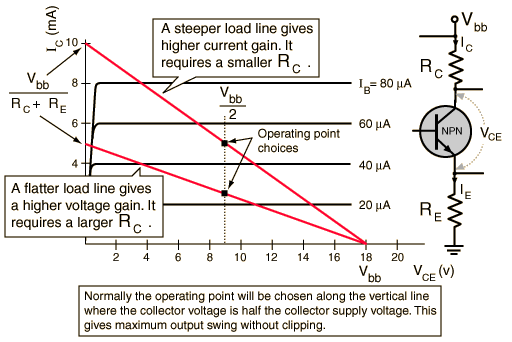

Transistor Load Line Variations(Approximate for 2N2222)
|
Index Electronics concepts | |||
|
Go Back |
