Dipole Moment

The electric dipole moment for a pair of opposite charges of magnitude q is defined as the magnitude of the charge times the distance between them and the defined direction is toward the positive charge. It is a useful concept in atoms and molecules where the effects of charge separation are measurable, but the distances between the charges are too small to be easily measurable. It is also a useful concept in dielectrics and other applications in solid and liquid materials.

Applications involve the electric field of a dipole and the energy of a dipole when placed in an electric field.


Dipole fieldDipole potentialElectric quadrupole
Index

Electric dipole concepts

Electricity and Magnetism
Go Back





Electric Dipole Potential

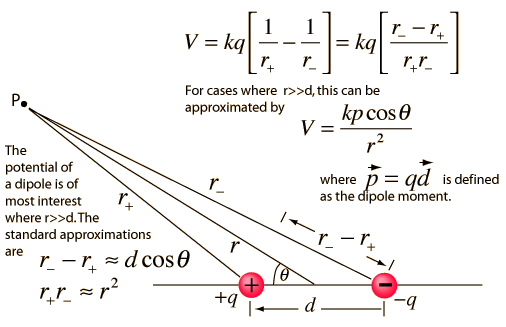

The potential of an electric dipole can be found by superposing the point charge potentials of the two charges:

Show equipotential lines
Potentials for other charge geometries
Index

Voltage concepts

Electric dipole concepts

Electricity and Magnetism
Go Back

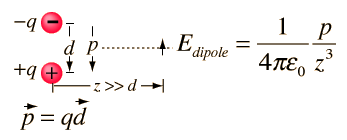

Electric Dipole Field

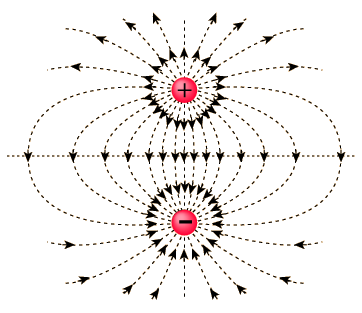

The electric field of an electric dipole can be constructed as a vector sum of the point charge fields of the two charges:

Direction of
electric dipole
Show equipotential lines
