Atwood's Machine

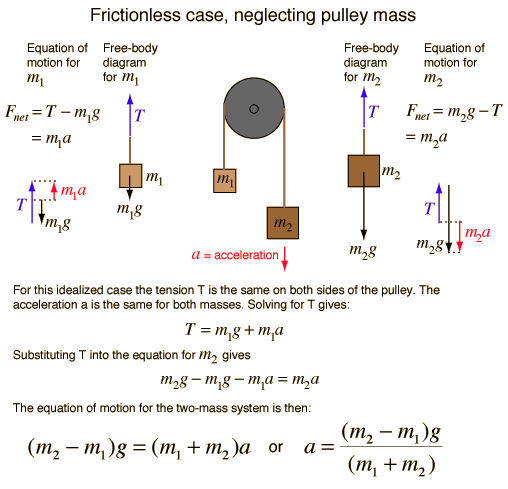

Basic setup

Calculation

 Index

Newton's laws

Standard mechanics problems
  Mechanics Go Back





Expressions

Atwood's Machine

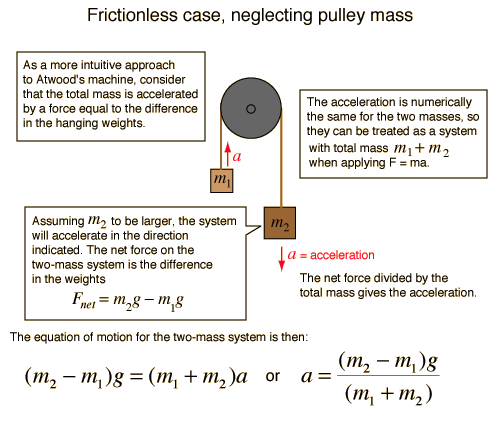

Frictionless case, neglecting pulley mass.

Application of Newton's second law to masses suspended over a pulley.

For hanging masses:
m1 =kg
m2 =kg

the weights are
m1g =N
m2g =N

The acceleration is
a = m/s²

and the tension is
T = N

Change any of the mass or weight values and the resulting acceleration and tension values will be calculated.
